Barcol-Air

From its origins in Europe, 1934, the Barcol-Air brand has grown in reputation with worldwide operations specializing in commercial air conditioning, the indoor environment and expertise in low energy air conditioning systems.

Barcol-Air are experts in chilled beam systems, chilled ceiling systems, VAV systems, induction VAV systems and low temperature and anti-condensation air conditioning systems. Its low energy systems are well suited to first class office buildings, public buildings, hotels, hospitals, laboratory buildings, and industrial application.

Overview VAV/CAV Induction VAV Chilled Beam Download (Product, Company Profile, Project Reference and etc.)

European Quality

Manufactured at factory in Singapore or Europe not in China!

Supreme Accuracy

Proved as the most accurate flow sensor of VAV in the world !

Innovative meet Energy Saving

Being the most accurate flow sensor and market leader in Induction VAV

8 decades of references

More than 10,000 projects references world-wide

Learn More!

Company Overview

HC Barcol-Air is manufacturer and supplier of a
complete range of high quality Barber Colman
air distribution products and systems. These
can be supplied with a short delivery time
mainly from stock. Together with a range of
standard products HC Barcol-Air has all facilities (R&D department & climate laboratory) to
develop, test and manufacture specifc products
and systems and to provide a total and best
comfort solution.
Extensive know-how and cooperation with
other company product groups (controls, chilled
ceiling and service) results in the best possible
solution for every HVAC application, with project
specifc designs if needed. HC Barcol-Air likes
to implicate all its know-how and experience
in the early stage of the project, to be able to
act as partner in designing the best possible
installation. Clients, consultants and contractors
can count on the technical support of our sales
engineers, supported by our R&D team and
climate laboratory facilities.

• Turnover HC Groep > 50 million euro and
almost 200 employees
• 2 products groups: Air distribution &
Controls > 70 employees
• > 70 years experience in indoor climate /
thermal comfort
• Combined knowledge of Air distribution &
Controls
• Added value by technical expertise
• R&D departments, 6 engineers with
100 years combined experience
• Full scale climate room > 250 tests
• “Specials” > 2.500 special developed
products
• > 200 large BMS projects
• > 10.000 Air Distribution projects
• Projects in > 50 countries with 35
distributors

The accuracy and response time of all
sensors apply to the standards set in the ISO
7726 (1998). The temperature sensors have a
relative accuracy of 0,1 ºC and a time constant
of 2,3 seconds. The air velocity sensors have
an accuracy of 0,014 m/s and a time constant
of 0,03 seconds.

Sites made with Mobirise are 100% mobile-friendly according the latest Google Test and Google loves those websites (officially)!

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

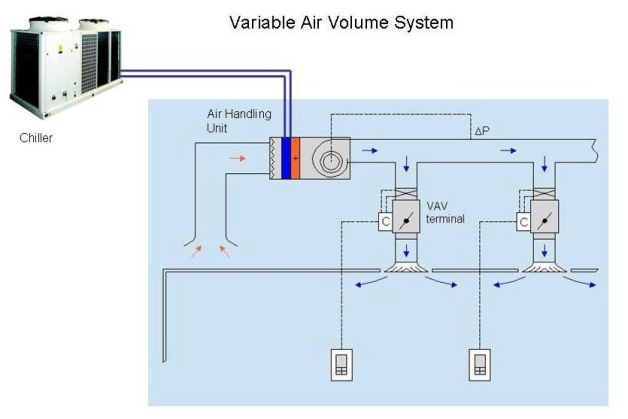

Variable Air Volume (VAV/CAV)

The performance of the VAV terminals and their controls is critical to the performance of the overall VAV system and Barcol-Air VAV terminals are known for their leadership in this area. Barcol-Air VAV terminals incorporate the following features:

• Airflow damper compensated for linear control operating with a Digital Actuator Controller enabling the VAV terminal to be calibrated to deliver the exact maximum and minimum airflows required for the areas they serve and any airflow in between to satisfy the cooling demand from the room sensor or BMS system

• Pressure independent control using patented Flo-Cross airflow sensors which provide an accurate measurement of the airflow to the Digital Actuator Controller. This allows the VAV terminal to deliver the calibrated airflow independent of the upstream air pressure.

• Single or double skin construction. Double skin construction is used for low noise applications to minimize breakout noise.

• Optional electric or hot water heater to provide heating if requirement. • Optional multiple connector air outlets.

Barcol-Air have a complete range of VAV/CAV terminals for all applications with built in pressure independent and factory calibrated digital controls.

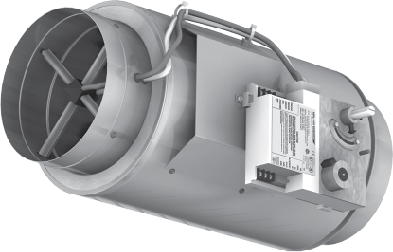

Round VAV/CAV Terminal

• Type: NA/NB…
• Single or double wall construction
• Size: Φ100,125,160,200,250,315,355,400
• Factory installed and calibrated controller and actuator BMS System
• Optional multiple connector air outlets

NA/NB Brochure and Specification

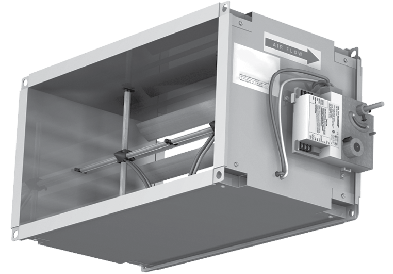

Rectangular VAV/CAV Terminal

• Type: NK/NL…
• Single or double wall construction
• Size: Φ100,125,160,200,250,315,355,400
• Factory installed and calibrated controller and actuator BMS System
• Optional multiple connector air outlets

NK/NL Brochure and Specification

Optional Accessories
• Three, four or six air outlet connector
• Plenum insulation
• Air outlet connectors with manual air dampers
• Hot water or electric heaters

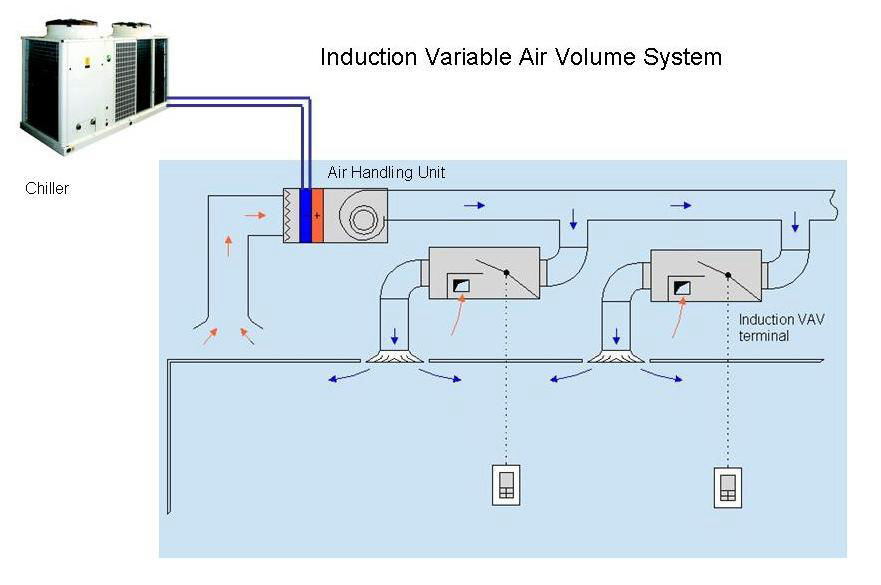

Induction VAV

The Induction VAV system works on a similar principle to the standard VAV system varying the quantity of primary cooled air to the room in response to the cooling requirements. However the Induction VAV system takes the energy saving capability and comfort levels of the system to a higher level.

These benefits are achieved through the use of special induction VAV terminals that induce room air into the terminal to mix with the primary air before the total air is delivered to the air conditioned space. This allows the system to operate with lower primary air temperatures, typically 10 deg C and this means about 30% less air flow is needed for given amount of cooling than a constant or variable air volume system using a typical 14 deg C supply air.

Induction VAV vs Conventional VAV

30% Less Air Flow

30% Smaller AHU and Air Ducts

Working well with just 20% of max airflow

Investment and Operation Cost Saving!

This large reduction in the primary air flow results in major energy savings due to the reduction in the fan power consumption in the air handling units and also means the size of the air handling units and the associated air ducting can be reduced by 30%.

A further benefit of the Induction VAV system is that the total amount of air supplied to the air conditioned space by the Induction VAV terminal reduces less than the reduction in the primary air flow. This results in the system being able to operate down to 20% primary airflow without cold air dumping from the air diffusers. The limit on a standard variable volume system is typically 50%. This means the Induction VAV system can operate with lower minimum flow settings resulting in even more energy savings when operating at low load conditions.

Barcol-Air is a market leader in Induction VAV systems and have a complete range of VAV terminals for all applications with built in pressure independent and factory calibrated digital controls

The Induction VAV terminals control the amount of primary air supplied to the room as well as the amount of room air induced back into the terminal in response to a room temperature sensor or BMS system. Barcol-Air Induction VAV terminals incorporate the following features:

Central Control: Induction system operating with a Digital Actuator Controller enabling the VAV terminal to be calibrated to deliver the exact maximum and minimum airflows required for the areas they serve and any airflow in between to satisfy the cooling demand from the room sensor or BMS system.
Best Flow Sensor: Pressure independent control using patented Flo-Cross airflow sensors which provide an accurate measurement of the airflow to the Digital Actuator Controller. This allows the VAV terminal to deliver the calibrated airflow independent of the upstream air pressure.
Lower Noise: Accoustic lining to minimise noise breakout.
Flexible: Optional multiple connector air outlets.

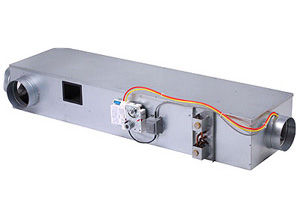

Induction VAV Terminal

• Type: NV…
• Pressure independent with Flo-Cross airflow sensing
• Inlet connector from 100mm to 400mm diameter
• Airflow 100 to 5,000 m³/h
• Factory installed and calibrated controller and actuator BMS System
• Optional multiple connector air outlets

Induction VAV Brochure and Specification

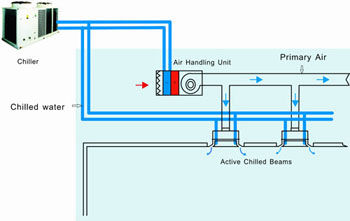

Active Chilled Beam

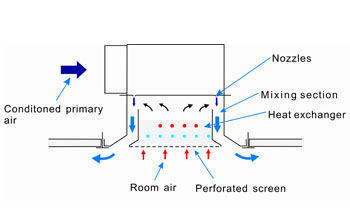

The active chilled beam system works on the principle of using a chilled water heat exchanger installed in a terminal in the ceiling to offset the sensible cooling loads in the occupied space. The system uses primary conditioned air introduced through the chilled beam terminal for ventilation and humidity control and to create the induction of room air through the terminal heat exchanger using special air nozzles.

The system provides substantial energy savings because it uses relatively high chilled water temperatures in the terminal heat exchanger resulting in large savings in the running costs of the system water chillers. It also allows the heat exchanger to run dry thereby avoiding the maintenance and hygiene issues associated with the condensate drainage from other terminals like fan coil units. There are further large savings in fan energy to move air around the building because the system does not rely on air to offset the sensible cooling loads and therefore the primary air quantity can be reduced to only that needed for ventilation, humidity control and to operate the nozzles for the induction process.

Chilled Beam vs Conventional Air Systems

30% Energy Saving

27% Less Electric Peak Power Demand

No Sick Building Syndrome (No Recirculated Air)

A Lot of LEED Point

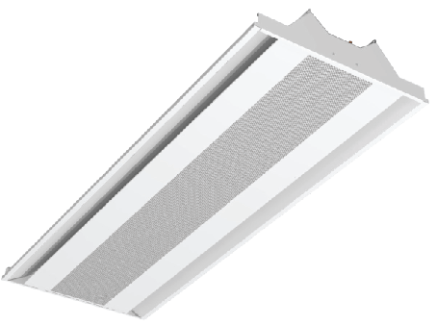

AIR-FIT Active Chilled Beam

• Width (mm): 300/600
• Plenum length (mm): 594 - 2994, On Request
• Inlet spigot (diameter, mm): 1x98, 2x198, On Request
• Weight (min. diffuser length, kg): 7.5 - 34, On Request

AIR-FIT Brochure and Specification

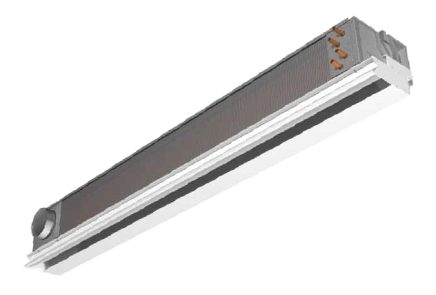

AIR-TWIST Active Chilled Beam

• Plenum length (mm): 1160, 1710, 2330, On Request
• Inlet spigot (diameter, mm): 1x125, 2x125, On Request
• Min. diffuser length (mm): 1148, 1698, 2318, On Request
• Weight (min. diffuser length, kg): 11, 15, 20, On Request
• Weight of extra diffuser lenght (kg/m): 3.4

AIR-TWIST Brochure and Specification

Download Items

• VAV (NA/NB) Specification
• VAV (NK/NL) Specification
• Induction VAV Specification
• AIR-FIT Active Chilled Beam Specification
• AIR-TWIST Active Chilled Beam Specification
• Barcol-Air Company Profile and References
• Flo-Cross Sensor Brochure
• Induction VAV Brochure
