Aldes

Established in 1925 in Lyon (France), where its headquarters are still located, Aldes Group is an international family-owned group, with more than 1,300 employees spanning 13 countries.

Aldes Group specializes in the design, manufacturing and marketing of “integrated solutions for indoor well-being”. Especially in innovative products like Constant Air Regulation (CAR) and Air-Inlet that require no electricity to control air flow in your building.

European Quality

Manufactured at factory in Europe not in China!

Supreme Accuracy

Proved as the most accurate CAR in the world !

Innovative meet Cost Saving

No adjustment or maintenance on equipment required !

9 decades of references

More than 15,000 projects references world-wide

Learn More!

Company Overview

Mobirise

Ventilation
A true pioneer, today the Aldes Group is a leader in ventilation and in air quality for single and multi-family housing and commercial premises.
In order to preserve the health of occupants and to preserve housing, the most modern ventilation systems facilitate air renewal and the exploitation of calories present in extracted air.
Hygiene, air quality, energy savings and housing preservation are watch words of an activity developing in parallel with the construction and the renovation of better sealed buildings.

Heating & Cooling
Aldes Group has always been involved in energy efficient comfort and sustainable development, developing heating and cooling solutions using the most innovative processes to exploit the calories present in the air. As a result, the Group offers multi-function and multi-energy solutions for renewable energy. Water and air heating are global multi-energy solutions available from the Aldes Group.

• > 200 million EUR in sales/year
• > 1228 employees (842 in France and 386 overseas)
• Export to over 60 countries across  all continents
• 13 subsidiaries in the world
• 21 Production R&D sites
• Present in over 2 million buildings

HVAC Components
Going beyond its traditional activity of simple air renewal, the Aldes Group has developed know-how and a comprehensive offering in air diffusion, distribution, and regulation whilst ensuring occupant comfort and associated energy consumption control.

Sites made with Mobirise are 100% mobile-friendly according the latest Google Test and Google loves those websites (officially)!

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

Constant Airflow Regulator (CAR): MR-Modulo/Mono

Airflow balancing is the key to a properly commissioned HVAC system. A balanced system does not suffer from over-ventilation (noise, high temperatures, high energy consumption) or underventilation (poor air quality and uncomfortable temperatures). In tightly built structures, ventilation and air conditioning systems are specifcally sized to guarantee that the proper amounts of air exit and enter the building.
Actual operating airflows are often far from the original HVAC system design. Accurate balancing is nearly impossible with traditional balancing dampers. A system may start out balanced, but it is susceptible to pressure fluctuations. Maintaining system balance requires constant adjustments, which are costly and time consuming. Fluctuations are unavoidable, but Aldes has a dynamic solution that preserves system balance.

MR-Mono
MR-Modulo
Advantage Points
Why ALDES not other brand/Volume Damper


The Aldes MR Mono/Modulo Adjustable Constant Airflow Regulator is a passive device that automatically compensates for changes in static pressure and adjusts to maintain the specifed airflow value.

Mobirise

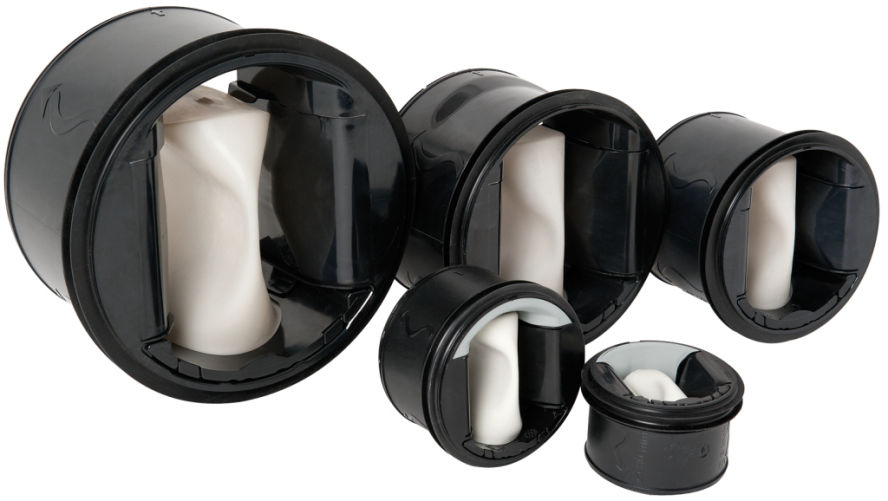

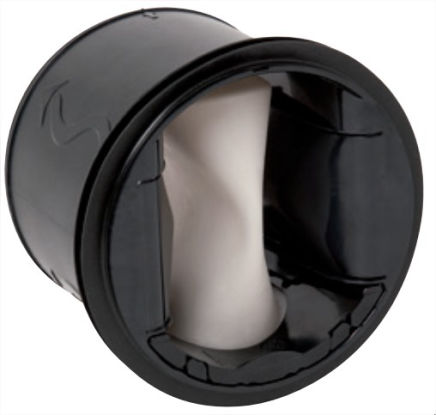

MR-Mono

• Single airflow for one product.
• Plastic body (M1 fire class) housing the silicone control membrane in a calibrated passage width.
• The passage width is fixed.
• Retention and air tightness provided by a peripheral elastomer external double-lip seal.
• Diameter : from 80 to 250 mm.
• Operating temperature : -10 °C / +60 °C.
• PVC-free and no maintenance required.
• UL certification.

MR-Mono Specification

Mobirise

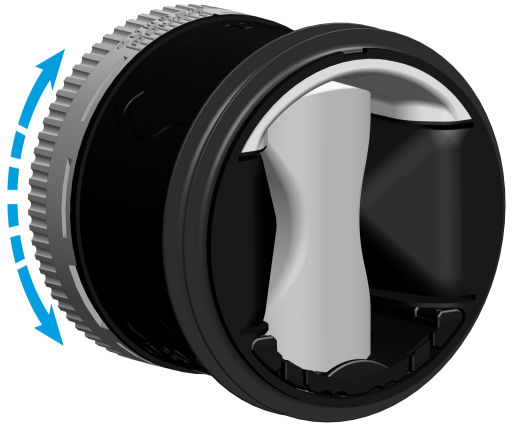

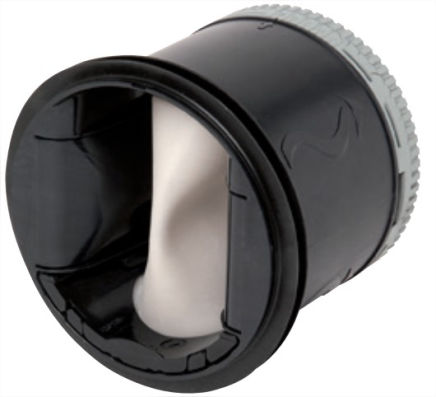

MR-Modulo

• Several airflow settings for one product.
• Plastic body (M1 fire class) housing the silicone control membrane in a calibrated passage width.
• The passage width is adjustable.
• Retention and air tightness provided by a peripheral elastomer external double-lip seal.
• Diameter : from 80 to 250 mm.
• Operating temperature : -10 °C / +60 °C.
• Manual tool-free control of desired airflow by removing wedge and turning rotating ring.
• PVC-free and no maintenance required.
• UL certification.

MR-Modulo Brochure
MR-Modulo Specification

Most accuracy Air Regulator in the world (with no electric part)

No Tools,
No Balancing,
No Maintenance !

Overwhelmingly easier installation than Volume Damper

Maintenance and Operation Cost Saving!

Why ALDES not other brand/Volume Damper

  1. Save installation time for contractor: Save contractor time for adjusting volume damper that the first one will change after you adjust the next damper in the same system.
  2. Energy saving: when using Volume Damper and the exhaust flow rate is higher than design = consuming more energy while the exhaust flow rate is lower than design = too much pollution in building.
  3. Less pollution and lower noise : pressure drop of the system will change overtime because of dust and dirtiness which makes the system with VD have much more pollution comparing to CAR. It also generates more noise which CAR has no problem.
  4. Why Aldes not other brand: Because of flow accuracy, flow adjustment and energy saving.

Constant Air Regulatior (CAR) vs Volume Damper

Save Installation Time and Money !

Energy Saving

Less Pollution and Lower Noise

The best CAR in the World !

Some of Project References for CAR (MR-Mono and MR-Modulo)

• Pattaya City Hospital, Thailand

• Chemnitz Hospital (1730 ea MR-Modulo), Germany

• Japan Tobacco International Office Building (1600 ea MR-Modulo), Switzerland

• Tour InCity (2000 ea MR-Modulo), France

• Hadid Tower (7000 ea MR-Modulo), Italy

• Shenyang Chian Medical University (2000 MR-Modulo), China

• Berlin Bikini Mall (2000 MR-Modulo), Germany

and many more projects
